Trailer ABS EBS & EBPMS Custom Connector Integration

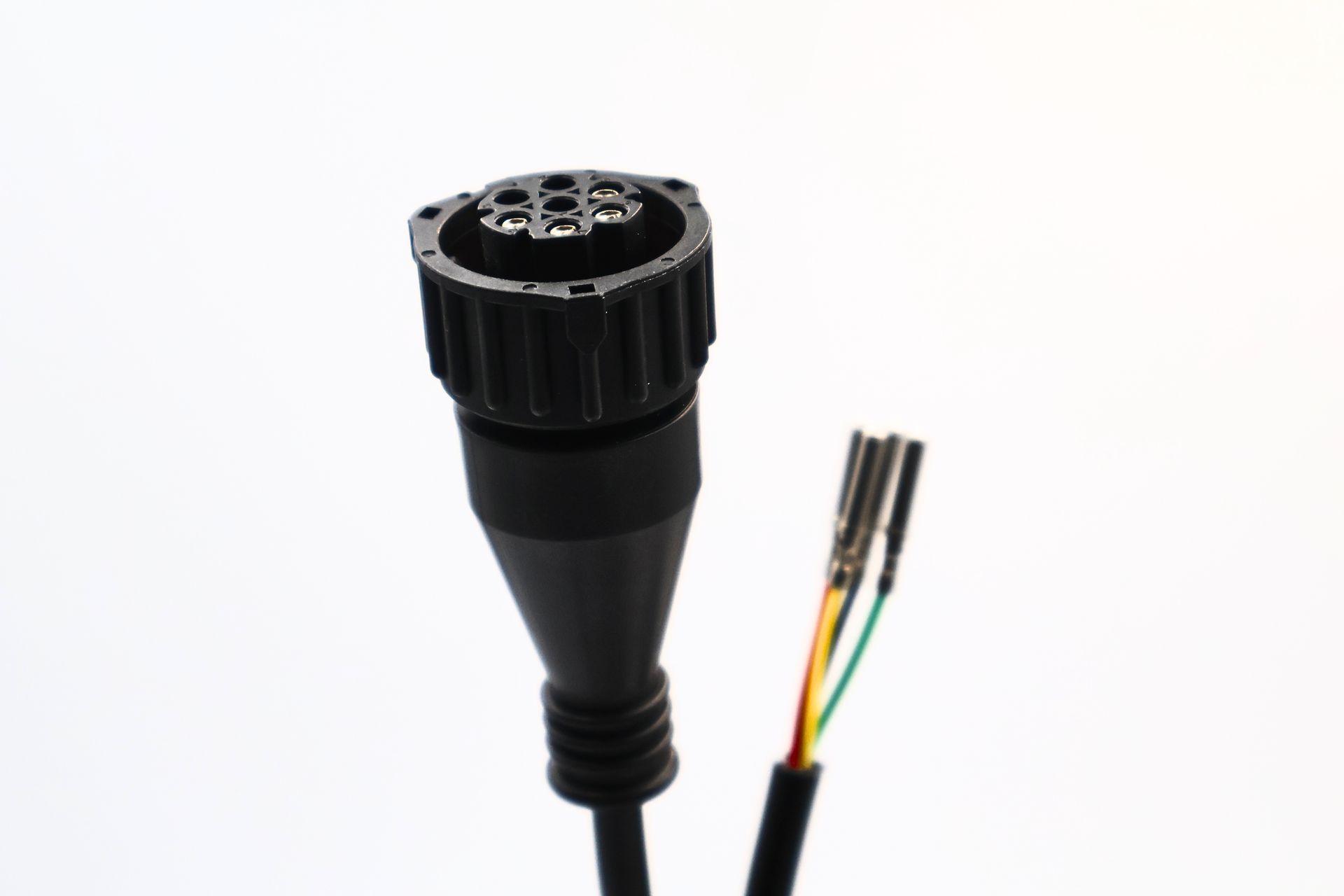

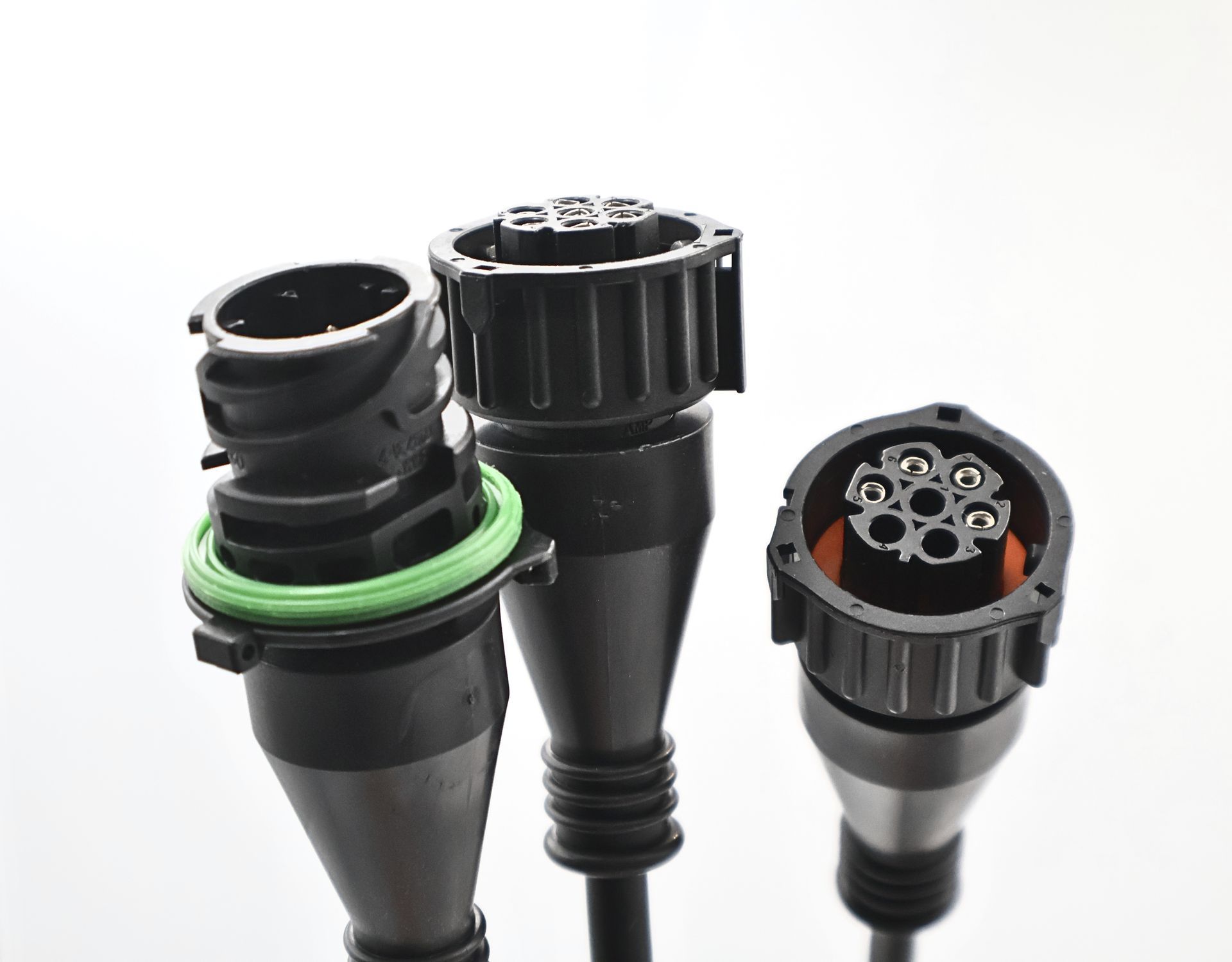

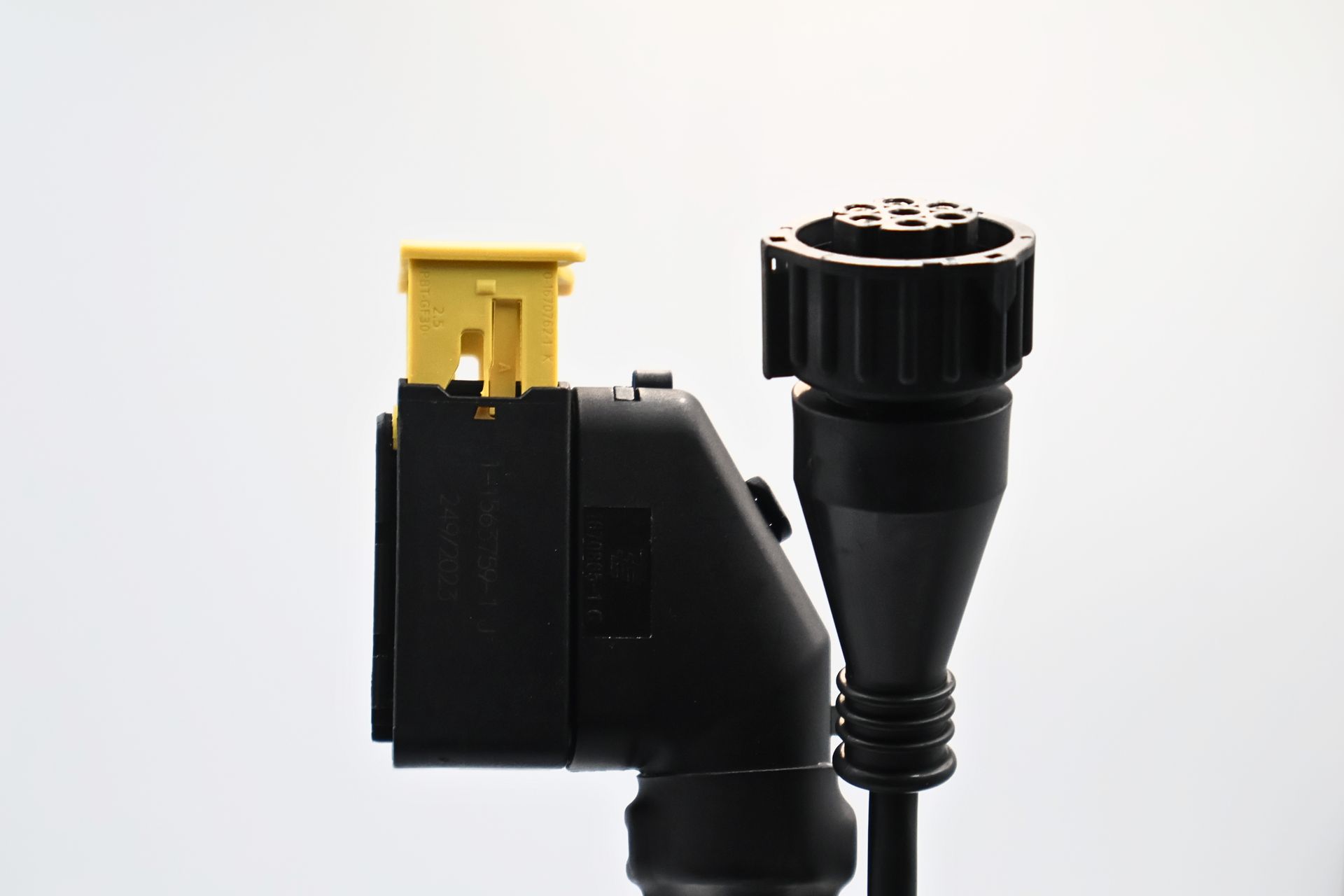

AVR Trailer EBS interface cables are designed using an industry-standard TE Connectivity 7-pin circular DIN connector platform, providing a robust and reliable modular connection solution for commercial trailer environments.
The connector architecture is engineered to be interchangeable and suitable for inline integration with Sensata TPMS systems commonly found on many trailers, as both Factory OEM-installed and retrofit solutions.
Our cable assemblies are manufactured using SAE-standard twisted pair CAN communication lines to help maintain reliable signal integrity and stable CAN-bus communication performance over long distances through demanding heavy-duty trailer applications.

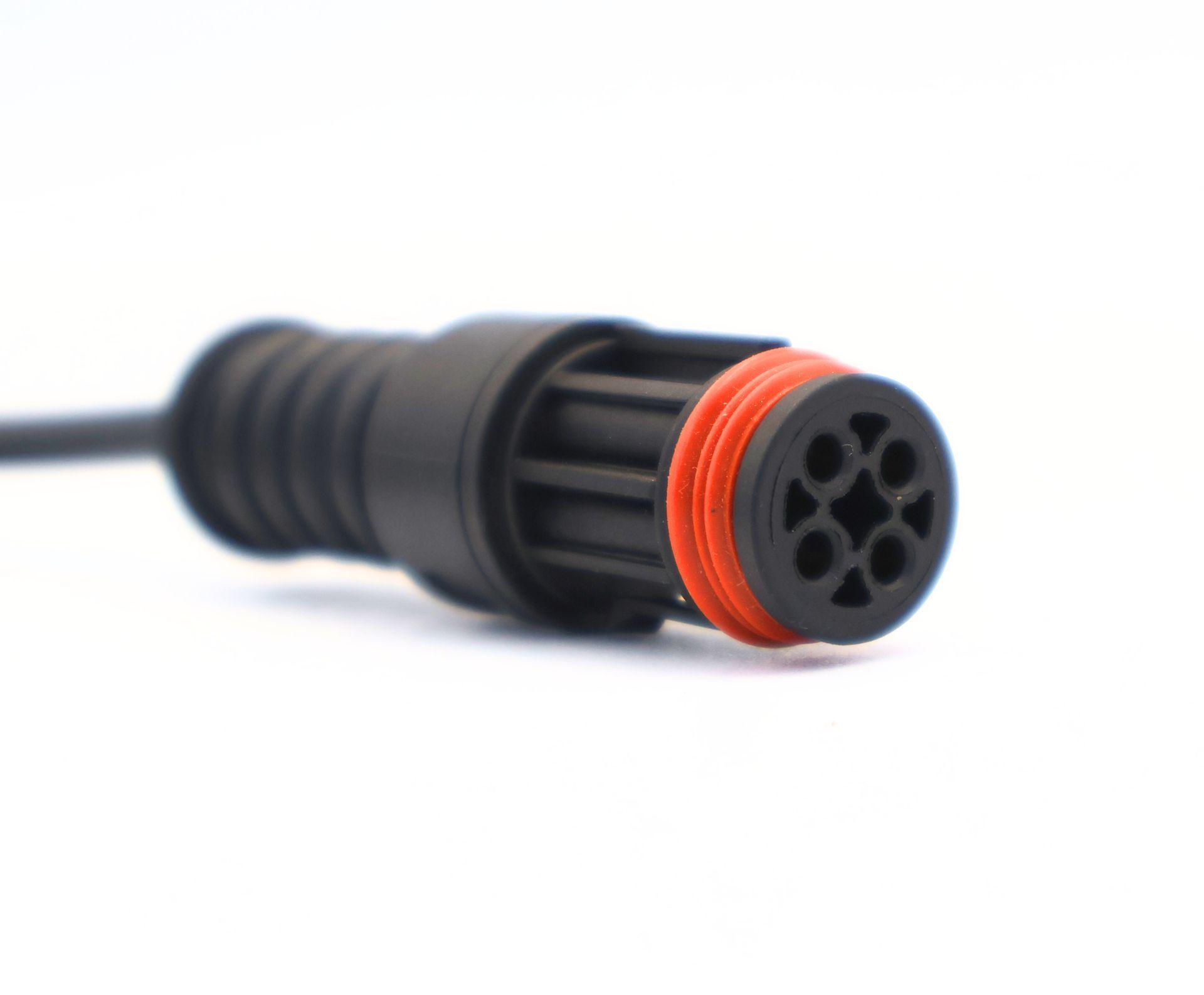

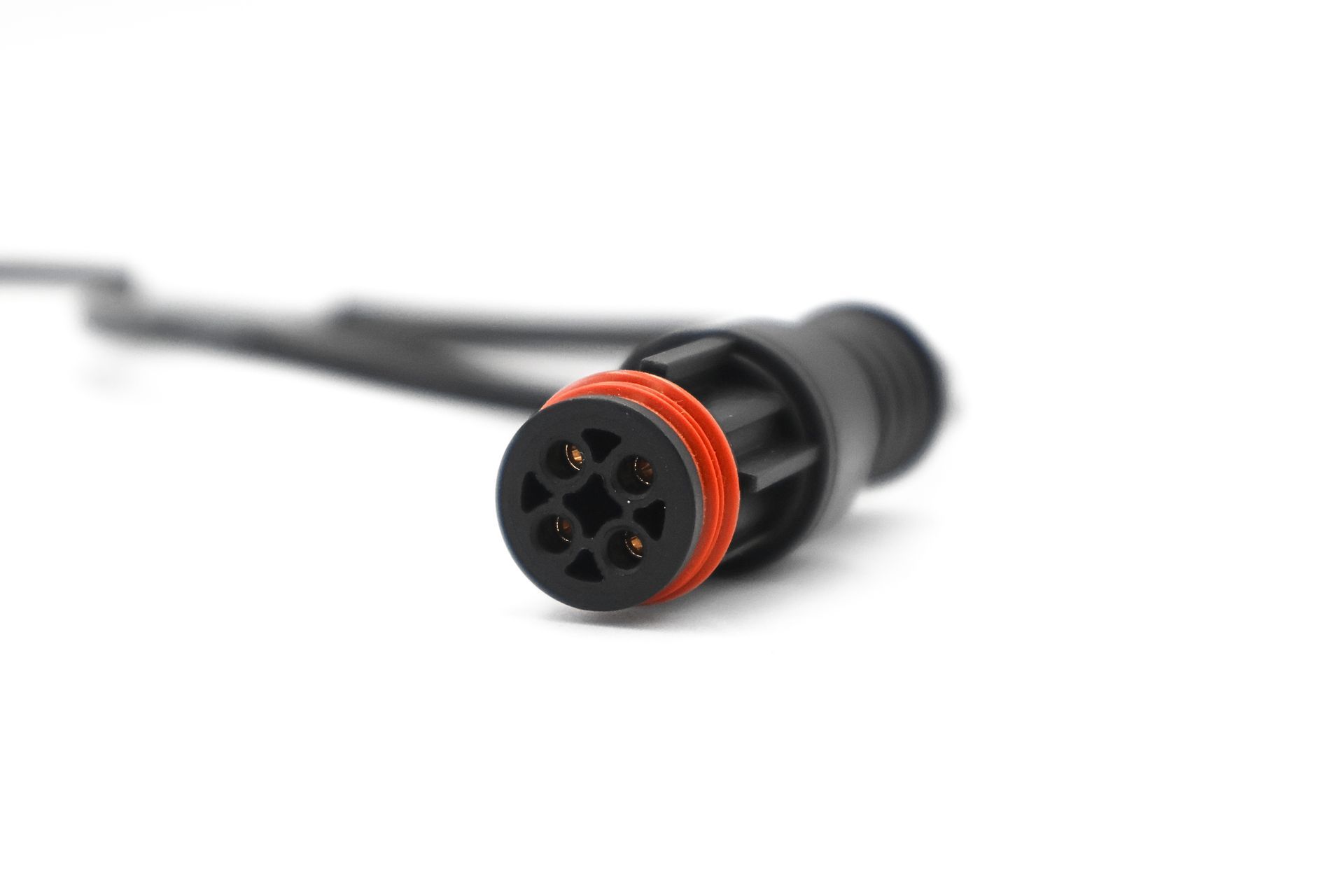

The TE Connectivity 7-pin DIN connector interface is fully over-molded to provide enhanced environmental protection, improved cable strain relief, and long-term durability in harsh commercial vehicle operating conditions.
This design approach allows simplified modular integration between:
- Trailer EBS & TPMS systems
- EBPMS data extraction
- OE Trailer telematics devices
- TPMS monitoring systems
- Smart trailer gateways
Key benefits include:
- Industry-standard connector interface
- Overmolded 7-pin DIN connector design
- SAE-compatible twisted pair CAN construction
- Simplified retrofit installation
- Reduced installation complexity
- Compatibility with common trailer TPMS architectures
- Compatible with Haldex, Wabco, and Knorr-Bremse sub systems
- Fleet-friendly serviceability
- 5 Year warranty
The AVR connector and harness design is optimized for harsh heavy-duty trailer environments, including vibration, moisture, road spray, and temperature extremes commonly encountered in fleet operations.
Fully custom versions of the cables are available to suite your unique applications and telematics gateway interfaces.
